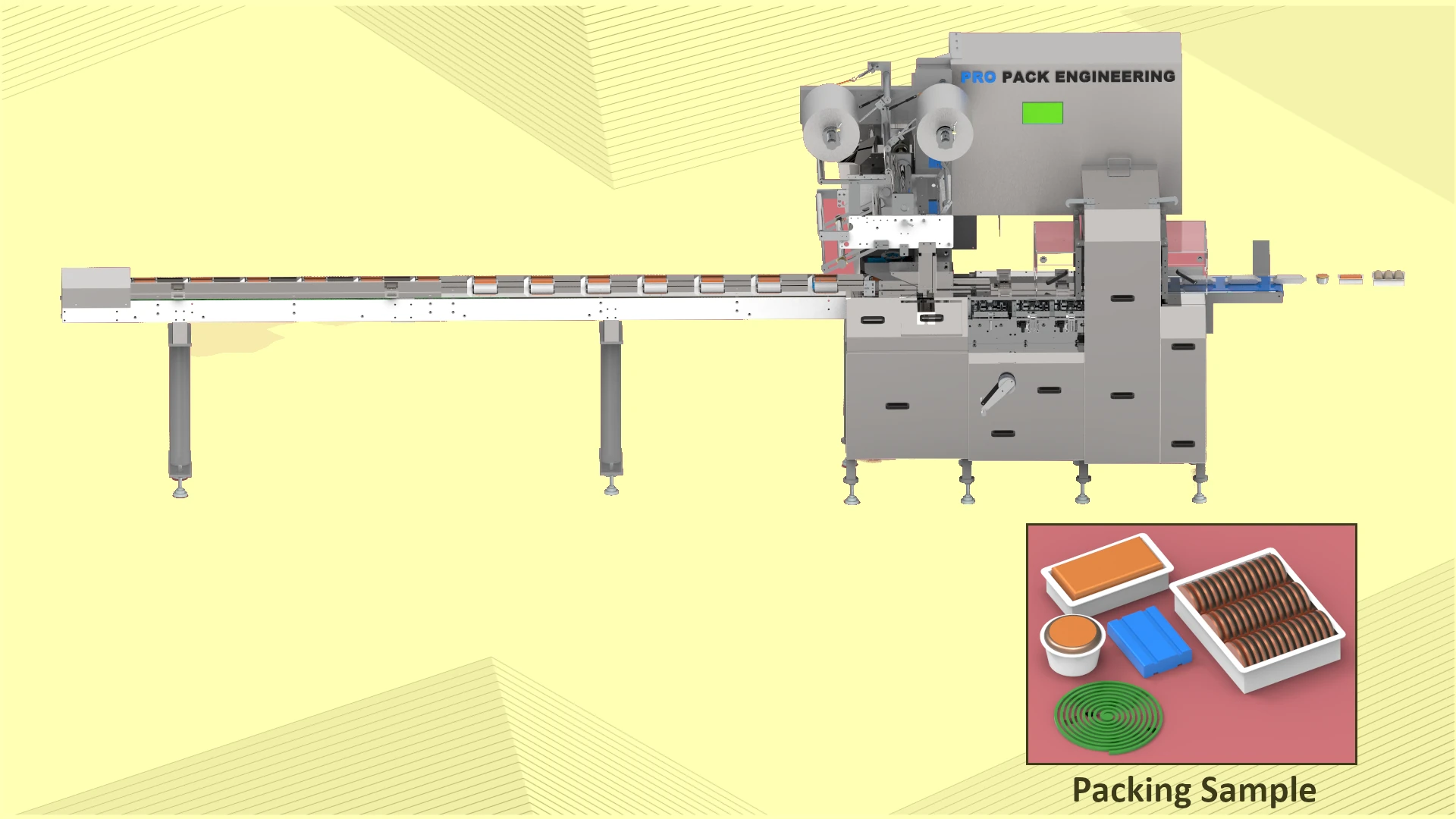

Tray pack Machine: your solution for efficient and precise tray packaging. Streamlining the process with advanced technology, it ensures consistent and secure sealing every time. Trust in its reliability to meet your tray packaging needs with speed and accuracy.
Technical Specification
- Max PutPut: 80 – 180 packs/minute
- Pack Size: 70 – 240mm CutOff Length
- Product Length:80 to 200
- Power supply: 415 v ac, 50 Hz with neutral and ground
- Machine weight: 1200kg approx
Standard Features
- Left to right direction.
- Electrical penal on machine mounted
- Bottom sealing unit & wrapper oprated by servo
- Single jaw/twin jaw arrengenent
- Second cutting unit for string pack
- Jaw temperature mechanical sleep ring oprated
- Reel width 500mm
- High ground clearance for easy cleaning.
- Machine height 815mm
- Safety guard poly carbonet and cover SS-202.
- Infeed conveyor 2.5mtr
- Hmi on penal mounted
- Automation Schneider/omron make
- Temperature control of sealing units through PLC
- Food contact parts from stainless steel 304
Optional Features
- Auto Splicing unit
- Air extraction unit (Vaccum pump)
- Stainless steel version can be available.
- Caster wheel arrengment
- Individual temperature contoll
- Contactless singal transmission maintenance free slip ring (kubler)
- Shaft SS material
