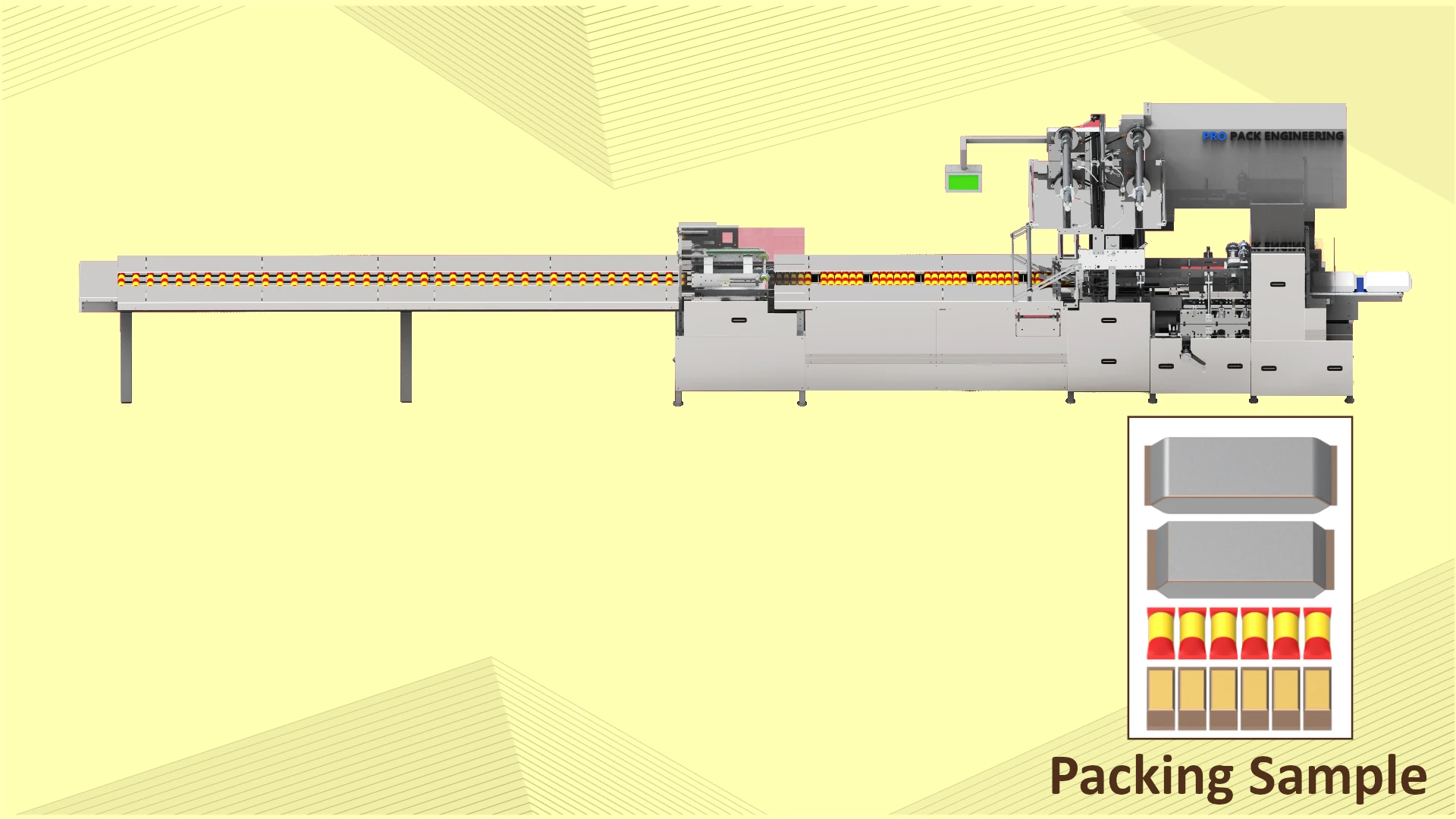

A secondary packaging machine takes individual, already-packaged products and groups them together for secure transport and storage. It automates the process of bundling products into boxes, bags, or other containers, improving efficiency and reducing damage. These machines come in various types to handle different products and packaging needs.
Technical Specification
- Max Output: 70 Packs/Min
- Pack Size: 180 – 360mm CutOff Length
- Steck Length:80 to 200
- Product Height:70 mm
- Power supply: 415 v ac, 50 Hz with neutral and ground
- Machine weight: 2200kg approx
Standard Features
- Left to right direction
- Electrical penal on machine mounted
- Bottom sealing unit & wrapper oprated by servo
- Single Jaw Arrangement
- Packet transfer conveyor
- Jaw temperature mechanical sleep ring oprated
- Reel width 700mm
- Machine height 715mm
- Safety guard poly carbonet and cover SS-202.
- Packet feeding conveyor 4mtr
- Hmi on penal mounted
- Automation Schneider/omron make
- Temperature control of sealing units through PLC
- Food contact parts from stainless steel 304
Optional Features
- Auto Splicing unit
- Air extraction unit (Vaccum pump)
- Individual temperature contol
- Contactless singal transmission maintenance free slip ring (kubler)
- Shaft SS material
